System68 - VHDL 6800
System01 now has it's own page here.
See below for Latest version - 17Jan04
28 october 2002 10:08 pm
This is basicly the 6801 core modified so that the
CPX should not affect the Carry bit. It keeps some of the 6801
enhancements but the condition codes on ADDD and SUBD reflect the
6800's CPX instruction. I've reduced the serial baud rate to 9600 because
sending an S1 record at 19.2Kbps is too fast for the CPU running
SWTBUG at 4.9 MHz (see above). I have a diagnostic routine which is
supposed to single step instructions using SWIs. It needs a bit of
work as it does not size the BSR instruction correctly. I've also gated
the RAM chip select with the System Clock on write cycles, in the hope

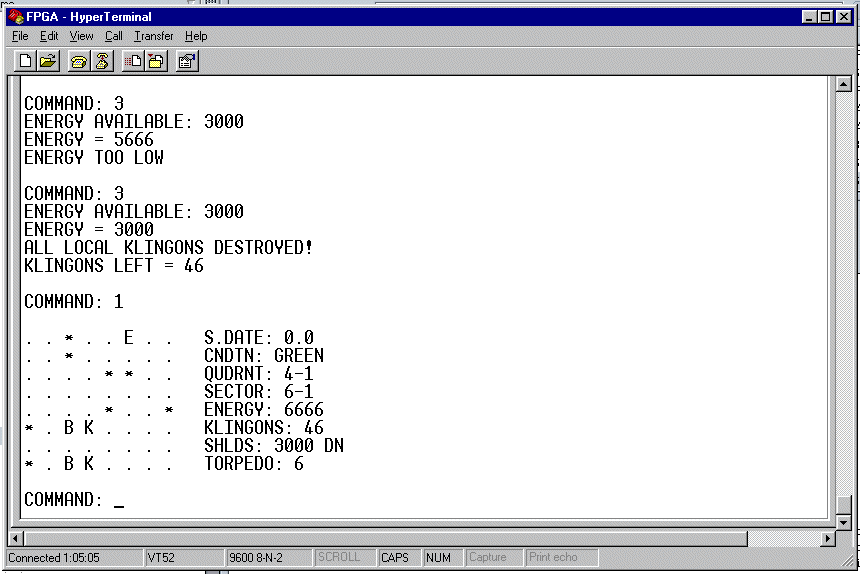

that it will make the system a little more stable. I got the TSC Klingon
Space Game to work, but I'm not sure how ... the system is a bit wonky
at the moment.
System68 progress report
1 November 2002
- I've added an 8 bit multiply,
- NMI is now edge triggered rather than level triggered,
- I've simplified the timer module to one 8 bit timer
and wired it to the nmi input,
- The miniuart status register now looks more like a
MC6850 and I've added programmable baudrate and software reset.
- I've intergrated the data input (di) and data output
(do) registers into a single memory data register (md).
- I've removed a number of states for Wait for Interrupt
(WAI) and integrated them into the interrupt service routine.
- I've added timing constraints
The timing constraints indicate a clock to address and clock
to cpu data set up time of within 30 nsec and a ram data to clock setup
time of within 15nsec. The B3-SRAM is specified at 15 nsec access time
so should be added to the address setup and ram data setup time. I've
routed the ALU and Condition Code outputs to I/O pads so that Web Pack
reports on the clock to ALU set up time. It reports this time is a little
over 83 nsec. The clock cycle time must allow a register output to be passed
through the ALU and be re-clocked into the register. This seems to indicated
that the design should run at 10MHz, (100 nsec clock cycle) but when I
increased the clock from 4.915 MHz to 9.83 MHz the CPU refused to work.
I'm not sure if its a timeing fault or an error that has arrisen out of
the modifications.
I'll post the code shortly, working or not.
3 November 2002
There was an error in the Memory Data Register in that it was
not loaded with the ALU output on Store instructions so the write cycles
wrote garbage. SEV & CLV were not implemented in the ALU. The Overflow
condition code on NEG may not have been quite right. I have got it running
at 4.915 MHz again. Its hard to tell if the M6800 programming manual is
correct or not. Multiply seems to work ... $5 x $5 = $19 = decimal 25. Decimal
Adjust seems to work $8 + $9 = $11 => DAA => $17 these are not exhaustive
tests by any stretch of the imagination but at least indicates its doing
something right. SWT BASIC v2.2 load and runs ... I can enter a program
and get it to print a character string, but it dies when I try printing
or assigning numbers, so there is still something not quite right in the
numerical operation. Note: that Test Bench 2 & 3 need to
be updated to account for the test_alu and test_cc ouputs from the CPU.
Swtbas22.S19 - South West Technical BASIC
V2.2
I was having trouble with backspaces not being honoured properly by
SWT BASIC V2.2.
Steve Tabler from the FUFU list kindly pointed out the following locations
$0154 = $0F = the delete / backspace character. this should
be changed to $08
$0155 = $5F = undeline character on the CT1024 and should be set to
$00 for terminals with auto backspace.
These locations seem to have the same purpose on SWT BASIC V2.0 and
V2.3 although the values may be different.
5th November 2002
Seems I had a hardware fault on my board ... running memory diagnostics
resulted in errors at $0052, $0050, $0150, $1050, $2050, $4050 and so on.
By grounding A5 & A3 and re-assigning the RAM address pins, it fixed
the memory fault (remember the address bus is shifted by one bit because
the data bus is 16 bits). I must have damaged the FPGA pins when probing
them with the CRO. It runs SWTBASIC V2.2 quite happily at 9.83 MHz. I've
added a special ALU type for CPX so that the 16 Bit ADDD and SUBD update the
carry flag as they should. CPX is a unique case on the 6800 in that it does
not affect carry. I also played around with the overflow bit on the NEG instruction.
10 November 2002
I'm not happy with my analysis of the memory problem. The output drive
level on the pins of the FPGA look fine for A3, A4 and A5 and I cannot
detect any shorts or opens on the FPGA or RAM Module. I have re-arranged
the chip select and write control signals. I have also relaxed the timing
constraints so they now pass. Relaxing the timing constraints from 80 nsec
to 90 nsec on the ALU output and 30nsec to 35nsec on the address and data
bus seems to make the design more stable. BASIC now runs more reliably. I've
added DAT (Dynamic Address Translation). It consists of 16 write only registers
mapped behind ROM at $E000 - $FFFF. Each register is 8 bits wide and selects
the high order bank address of each 4Kbyte RAM segment. ie. register 0 at
$FFF0 selects the bank for $0000-$0FFF, register 1 at $FFF1 selects the bank
for $1000-$1FFF and so on. Only RAM is mapped through the DAT. I/O and ROM
space are fixed at $8000 - $9FFF and $E000-$FFFF respectively. The value
written into the register forms the physical address bits A12 - A19. Note
that there is only 256Kbytes on the SRAM module. I've changed the data bus
multiplexer so that D7 to D0 is used for the low bank ($00000 - $1FFFF) and
D15 to D8 for the high bank ($20000 - $3FFFF). It should be possible to use
the page mappping to form a RAM Disk.
15 December 2002
Its taken a while for me to pick this up, but there is an error in
the TX clock generator in clkunit.vhd. Basically the TXEnab signal used
to drive the Transmitter should only be high for one system clock pulse,
or more to the point, the Cnt16 counter should only be inremented when the
RXEnab signal is high. What had happened was that when Cnt16 reached the
terminal count of zero it immediately reset rather than waiting for the
RXEnab pulse so the transmit baud rate was not accurate.
This explains why the design could not be replicated. I thought I tested
it properly before posting but apparently I hadn't. I have update the
Webpack ISE software since then from 4.2WP2.0 to 4.2WP3.0 with service
pack 3, but I doubt that would account for the error.
Sys68-30mar03.zip
- Revised Mini Uart, Added Compact Flash interface
30 March 2003
I've been trying to get the open cores mini UART to look more like a
6850 with word formating (7/8 data bits, odd/even parity, 1/2 stop bits).
It has developed a problem in that it does not echo typed characters. I don't
know why. Also I have modified the design so that the execute micro cycle
is hidden behind the following fetch cycle. This reduces Immediate dual
operand execution time to 2 cycles rather than 3 and direct dual operand
adressing from 4 cycles to 3 cycles. I've also replaced the Parallel I/O
ports with a B5-CF compact Flash interface from Burch Electronic design.
I'm using it in 8 bit true IDE mode.
31 March 2003
This version should have the miniUART working ... although I must admit
that at 19K2 Baud th UART is a bit fast for the 6800 core to keep up with
when downloading S1 tapes. I have written a Compact Flash sector Read/Write
routine that allows you to write the contents of RAM into the Compact Flash
module, one sector (512 bytes) at a time. It was assembled with the AS02
assembler listed above. I used it to save the SWTBUG monitor program at
LBA sector number $F478 - $F479 and SBUG9 for the 6809 at $F47C - $F47F
cf.zip - Compact Flash sector read/write
29 June 2003
Han Pufal suggested I use initialized Block RAM for the ROM rather than
building a ROM out of Slices. He has used the block ram feature of the Spartan
FPGA for memory in his PDP8 and PDP9 designs. There are 7 Kbytes of block
RAM available in the XC2S200 these are arranged as 14 x 512 byte blocks
that may be configured as 1 bit, 2 bit, 4 bit, 8 bit or 16 bit memory block.
They can also be configured as Dual Port memories. They go under the library
name of RAMB4_S1/2/4/8/16.These block can be intialised with pre-defined
values turning them into ROMs. I would prefer to make my designs as generic
as possible, but the use of block RAMs on the Spartan FPGA was irrisistable,
as I have used up all the slices in my 6809 design. Putting the ROM in block
RAM allowed me to incorporate a monitor ROM in the FPGA rather than trying
to boot it out of compact flash. I am using System68 as a test bed to verify
that Block RAM ROMs work.
The Spartan II block ram is synchronous. Output is clocked on the rising
edge of the clock signal. The address bus must be stable before the rising
edge. In theory this should not be a problem for my System68 as the address
changes as a result of the negative edge of the clock signal. With a 10MHz
clock, there is 50nsec to set up the address. The constraints file limits
the address set up time to 35nsec and these constraints appear to have been
met. Providing Block RAM has a 15nsec access time, it should work in the
design.
The block ram ROM "swtbug_rom.vhd" does not work where as the asynchronous
slice version "swtbug.vhd" does work. The blok ram works fine when
mapped into the "memio" memory examine and change utility wich also uses
a falling edge clock, but uses a hand shake system to talk to RAM.
Also featured in this release is a Hardware "Trap" which can generate
an interrupt to the CPU when an 16 bit address, 8 bit data or 2 bit control
match is made. There are adresss, data and control comparitor registers as
well as address, data and control qualifier registers which allows you to
mask out which bits you want to trap on. I've wired the Trap interrupt to
the NMI input. You'll have to read the comments in the VHDL code to determine
how it works, as I have not had time to document it.
Revised 5 September 2003
It has been reported to me that the miniUART2.vhd file is missing
from the 29 June 2003 release. I've added the file, updated the test bench
for the miniUART. Swtbug_rom.vhd now includes the unisim library. The
release is Sys68-29jun03a.zip. It compiles ok, but I have not tested
it because it is for the B3-Spartan2 board, and I am now using the B5-X300
board (on loan) to get my 6809 design running. I will release a Sys68-X300.zip
version shortly, although the cpu core cpu68.vhd should not have changed much
(if at all). I put handshaking on the 29 June 2003 release so I could slow
down accesses to block RAM, although I will probably remove it in the next
release. There are major issues with the clock polarity on System68's which
explains why they are so finicky interfacing to SRAM. I will correct that
in the next release.
JEK - 5 Sep 03.
This is a version has the clock phases reversed so that it clocks in the
negative clock edge. The problem before was that RAM acceses were performed
on the first clock pahse rather than the second. Sys68-X300-5sep03.zip incorporates
a 1K byte Slice ROM at $E000 - $FFFF and 1K Block RAM ROM at $C000-$DFFF.
There are no cpu wait states. you can read RAMB4_S8 with the memory examine
utility in the monitor ROM. The CPU remains much the same with the exception
of inverting the clock. There are a number of test benches to exercise the
UART, Block RAM and system as a whole. I've also added some address and data
bus trigger logic to generate an NMI to the processor when various address,
data and control signal conditions are met.
JEK - 6 Sep 03 - 12:48 am
There was a bug reported in System01 which is repeated in System68 and
possibly System11 and System09. Such is the peril of replicating a
design. Basically the CLR instruction does not affect the carry. it
should clear it. The reason is that state sequence used the "alu_ld8"
(8 bit load) to load zero into the register or memory, but does not
clear the carry. The carry is not affected. This is now fixed.
I have also updated the UART. It now supports a synchronous X1 clock.
The Uart has separate baud clock inputs for TX and RX, just like the
6850. I've also implemented CTS so that it disables the TXbuffer empty
when High (not CTS is active low) and I've also implemented DCD which
reset the Receiver when high and can generate an interrupt if the RX
interrupt enable bit is set. It has not been thoroughly tested, but
should work.
I've revamped the start bit synchroniser. It now works much more
reliably than before. I can now reliably download an S1 tape at 38.4
Kbaud, where as before it did not even work reliably at 4800 baud.
Epedit.zip - ROM Utility
Program
29th June 2003
Epedit is a utility for loading, editing and saving binary eprom images.
I have featured it elsewhere on this web site, but I have added an extra
feature for generating initialisation strings for blockram. "Type Hex" selects
the save mode to generate INIT_0x strings for blockram. These strings are
generated so the Most Significant Byte comes first. ie:
$001F - $0000
$003F - $0020
$005F - $0040
The initialisation strings are 256 bits long, or 64 x 4 bit hexadecimal
digits.
Example of using epedit:
/* specify motorola S1 format load */
Type Motorola
/* load file with <offset> being in hexadecimal */
Load <filename.s19> <offset>
/* set save mode to VHDL Block RAM format */
Type Hex
/* save file where <start address> and <end address> are in
hexadecimal */
Save <filename.txt> <start address> <end address>
/* exit */
Quit
Epedit was compiled under cygwin and gcc, and uses generic C. It should
compile under just about any C for the PC or other 32 bit machine. It uses
a 64 Kbyte buffer so is too big for 8 bit machines. The executable probably
needs a cygwin DLL to run.
ICST525-01 PLL Clock divider:
Check out the web site http://www.icst.com/products/ics525inputForm.html
for a frequency calculator for ICST525-01 PLL chip. Given
a 20 MHz Xtal oscillator, the ICST525-01 PLL should use the following
dividers to generate a 4.915254 MHz clock:
0 = link in (grounded)
1 = link out (pulled high)
V8
|
V7
|
V6
|
V5
|
V4
|
V3
|
V2
|
V1
|
V0
|
NU
|
0
|
0
|
0
|
1
|
1
|
0
|
0
|
1
|
0
|
|
R0
|
R1
|
R2
|
R3
|
R4
|
R5
|
R6
|
S0
|
S1
|
S2
|
1
|
0
|
0
|
1
|
1
|
1
|
0
|
0
|
1
|
0
|
