Step 2: Specify the LVDS Receiver Ports & Parameters

To specify the LVDS receiver ports and parameters, follow these steps:

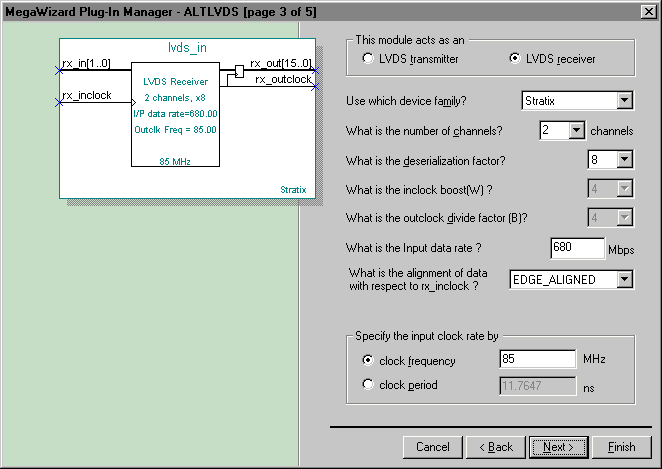

1. In MegaWizard Plug-In Manager - ALTLVDS [page 3 of 5], select LVDS receiver under This module acts as an.

2. Specify the following responses to the remaining wizard prompts in MegaWizard Plug-In Manager - ALTLVDS page 3:

Wizard Prompt:	Response:
Use which device family?	Make sure Stratix is selected.
What is the number of channels?	Select 2.
What is the deserialization factor?	Select 8.
What is the input data rate?	Type 680.
What is the alignment of data with respect to rx_inclock?	Make sure EDGE_ALIGNED is selected.
Specify the input clock rate by	Make sure clock frequency is selected and type 85 in the box.

Show Me




3. Click Next. MegaWizard Plug-In Manager - ALTLVDS [page 4 of 5] appears.
