Step 6: Edit the newt Input Node Waveform

To edit the newt input node waveform, follow these steps:

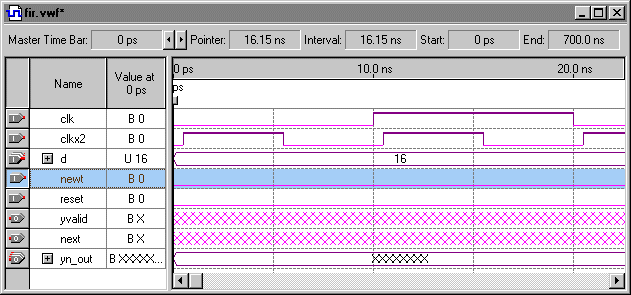

1. To select the entire newt input node waveform, click the Selection and Smart Drawing Tool on the waveform's handle. The entire waveform is highlighted.

2. Choose Value > Clock (Edit menu). The Clock dialog box appears.

3. Under Base waveform on, select Time period.

4. Type 80 in the Period box, and select ns in the list.

5. In the Duty Cycle list, type or select 25.

6. Click OK. The waveform displays a repeating waveform with a period of 80 ns and a duty cycle of 25% on the newt input signal.
