Step 4: Edit the clkx2 Input Node Waveform

To edit the clkx2 input node waveform, follow these steps:

1. Click the Selection and Smart Drawing Tool button on the toolbar.

2. To select the entire clkx2 input node waveform, click the Selection and Smart Drawing Tool on the "handle" of the clkx2 node. The entire node, including the waveform, is highlighted.

3. Choose Value > Clock (Edit menu). The Clock dialog box appears.

4. Under Base waveform on, select Clock settings and select clockb in the list.

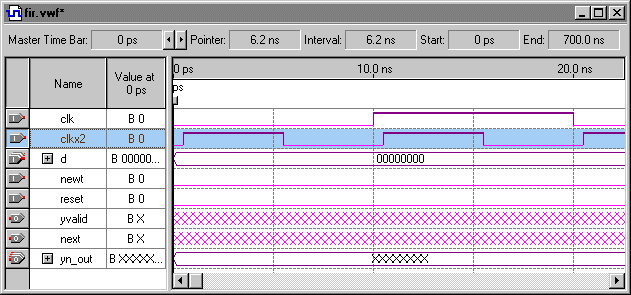

5. Click OK. The clkx2 waveform is created according to the clockb clock settings.
