Functions and Concurrent procedure calls

Concurrent procedure calls

A concurrent procedure will produce new values for its outputs whenever the value on one of its input signals changes.

Why we want more than just a function call

Example:

with func_sel select
        ALUout <=
        '0' & (a OR b)  when OPOR,
        '0' & (a AND b)         when OPAND,
        '0' & (a XOR b)         when OPXOR,
        add_w_carry(a,b,cin)  when OPADD,
                -- where add_w_carry returns a value
                -- one greater than the size of its inputs
        XOUT            when OTHERS

reg_clk:  block (rising_edge(clk))
        begin
        ResReg <= guarded ALUout(1 to dout'length);
        end block;

cout <= ALUout(0) after cout_delay;
dout <= ResReg after reg_delay;

Example

        O_bus <= ALU ( A_bus, B_bus, cy_in, ctl.func);

In this statement we are ignoring the responsibility of the ALU function to set status flags (like C, S, N, V) because a function can return only one value. If we create

        procedure ALU ( X, Y : in bit_vector;
                Cin : bit;
                F : out bit_vector;
                C,S,N,V : out bit;
                ctl_func : in ALU_ops );

then we can invoke the procedure ALU to update the control flags with

        ALU ( A_bus, B_bus, O_bus, Qc, C,S, N, V, ctl.func);

Role of concurrent procedures in creating hierarchical design

• instantiation of procedural (behavioral) module into the concurrent (behavioral) description
• contrast with instantiation of structural hierarchy
• no component declaration -- configuration specification
• other means of managing the replacement of a function or procedure with a corresponding implementation becomes necessary.

Guarded Blocks

To model synchronous behavior, VHDL provides the notion of BLOCKS with GUARD expressions which can be used as enabling conditions which must be satisfied before a signal is updated.

        label  :        block   ( guard_expression  )  begin
                                . . .
                        sig_ident  <= guarded waveform(s)
                                . . .
                        end  label  ;

Example: A VERY simple CPU Data Unit

        CPU_p0: block   ( enable = '0' )  begin
                        A_bus <= guarded Register_file (IR.dest);
                        B_bus <= guarded Register_file (IR.source);
                        O_bus <= ALU ( A_bus, B_bus, ctl.func);
                        end CPU_p0;

        CPU_p1: block   ( enable = '1' )  begin
                        Register_file (IR.dest) <= guarded O_bus;
                        end CPU_p1;

This description assumes the earlier definition of the buses and the IR register as bit_vector signals, and Register_file as an array of bit_vector signals. ALU is a function returning a bit_vector value and may have been defined in the declarations part of the architecture.

In the upper block the meaning of the "guard" is that the Abus and Bbus receive the content of theRegister_file only while the enable is low.

In the lower block the Register file is update only while the enable is high.

Buses and Registers

In the previous examples using guarded blocks, we deliberately have not shown the declarations of O_bus and the Q register. They might appear as follows:

signal  Q  :  bit_vector ( 0 to REGSIZE-1) register ;
signal  O_bus : bit_vector ( 0 to 15 ) bus;

Signals which are to be the targets of guarded signal assignments must be declared to be either bus or register kind. You should declare these consistent with the way in which you are using the signal.

Bus Resolution Functions

VHDL must be able to model the behavior of signals (like the DATA_BUS) above which may be driven from several sources.

There is a separate DRIVER for a signal for each process (or concurrent signal assignment statement - of any kind) in which there is an assignment to that signal. For the example above, there will be some combination of five processes / concurrent statements for the five components shown. Correspondingly, there will be five drivers for DATA_BUS.

Each DRIVER is a WAVEFORM -- a list of value/time events waiting to occur to update the value of the signal. Whenever it is time for a signal update to occur, the presence of multiple drivers means that the current value of all the other drivers must be considered by a BUS RESOLUTION function, usually included as part of the TYPE declaration for that kind of signal and stored up in the corresponding package.

The behavior of signals with multiple drivers tends to be technology specific. The most common models are

WIRED_AND

WIRED_OR

TRI_STATED

STRENGTH_LOGIC

The models constructed to represent such behaviors are called BUS RESOLUTION FUNCTIONS. Unlike virtually every other language, VHDL provides complete flexibility in the creation of bus resolution functions, yet allows them to be kept well hidden from view in package declarations.

Where Bus Resolution Functions Belong

Many signals will share the kind of bus resolution function consistent with the implementation technology being used. This suggests that bus resolution functions should be associated with the type of the signal. This is done by creating a subtype which modifies the original type declaration by including the name of the function to be used to model the behavior of signals of that subtype which have multiple drivers. subtype type_name is res_func_name base_type ;

Example:

        subtype  OC_bit  is  Wired_And  bit ;

Then we can declare

        signal  IRQ : OC_bit ;
        signal  DATA_BUS :  array (0 to 7) of OC_bit;

Example: In package std_logic_1164, the type declaration for a nine valued std_ulogic is:

        type std_ulogic is ('U','X','0','1','W','Z','L','H','-');

But we used the resolved logic type std_logic in our example of the ALU. That is declared subtype std_logic is resolved std_ulogic;

The function resolved is described in the package body.

The Wired_And function is declared in the same package where OC_bit was declared:

        function Wired_And ( in_driver : in bit_vector )
                                                return bit is

                variable result : bit := '1';
        begin
                for i in in_driver'range loop
                        if in_driver(i) = '0' then
                                result := '0';
                                exit;
                        end if;
                end loop;
                return result ;
        end Wired_And;

Synthesis of guarded signal assignments and bus resolution functions.

Guarded signal assignment statement

bb:  block ( rising_edge ( clock ) )
        Z <= guarded X;
        end bb;

is virtually the same as saying

if rising_edge (clock) then
        Z <= X; -- where Z has been declared to be a signal
                -- of kind register.

If the RHS signal is a bus, then the bus resolution function must specify what is assigned to the signal if there is no driver (similar to the "else" situation previously discussed).

Example:

function tristate (in_driver : std_logic_vector )
                        return std_logic is
begin
        if in_driver'length = 0 then return "Z';
        else
                        ....

A Concurrent VHDL Example and Structural Realization

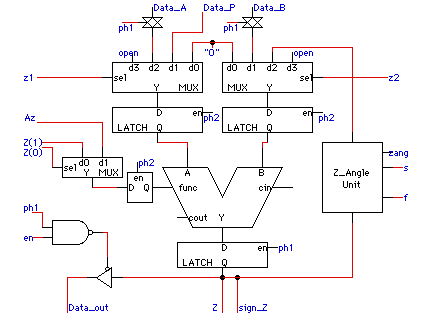

From Leung and Shanblatt: ASIC Modeling with VHDL, Kluwer, 1989. The circuit below is part of an IKS controller.





entity Z_Adder is
        port  (         Data_A  : in integer_32;
                        Data_B  : in integer_32;
                        Data_P  : in  integer_32;
                        Z               : out integer;
                        Data_out        : out integer_32;
                        sign_Z, s       : out bit;
                        z1, z2          : in bit_vector (0 to 1);
                        Z_op, zang      : in bit_vector (0 to 1);
                        f, Az, en       : in bit;
                        ph_1, ph_2 : in bit
                );
-- integer_32 is declared elsewhere to be a bit_vector ( 0 to 31).

-- Note that letting Z simply be type integer suggests that the
-- synthesis tool should produce a bit_vector capable of
-- displaying the full range of integers,  i.e. 32 bits.  This is,
-- in fact, just what was wanted.

end Z_Adder;

architecture Concurrent of Z_Adder is
        signal A_in, B_in               : integer;
        signal Z1_in, Z2_in             : integer;
        signal Zsum, Zang_out   : integer;
        signal GND, open_src    : integer := 0;
        signal Zc, Zc_in               : bit;

-- again, we would synthesize 32 bit buses for everything
-- declared "integer."

begin
-- transmission gates from Data Buses
        A_in <= Data_A when ph_1 = '1' else A_in;
        B_in <= Data_B when ph_1 = '1' else B_in;
-- Leaving out the else clauses here would be more efficient from
-- a simulation point of view, but it makes explicit what the
-- synthesis tool has to generate i.e., a memoried element.  In
-- some tools this would lead to a redundant feedback from Q
-- back to D.

-- z2, z1, and Z_op are control signals from
-- IKS controller selecting one of 9 functions
-- to be implemented in the Z_adder.

        with z1 select
                Z1_in <= GND            when "00",
                                Data_P   when "01",
                                A_in            when "10",
                                open_src        when "11";
        with z2 select
                Z2_in <= GND            when "00",
                                B_in            when "01",
                                Zang_out        when "10",
                                open_src        when "11";
        with Z_op(0) select
                Zc_in <= Z_op(1)        when '0',
                                  Az            when '1';

-- All three WITH statements produce the multiplexors we want.

-- Use of block to show design partition.
-- These are the ph_2 enabled latches shown in the figure above.
-- Note that synthesis tools like to have latches driven from a
-- common enabling signal or clock in the same block.  It makes
-- for a cleaner model, too.

        Adder_blk: block
                signal ZA, ZB, Zout : integer;
        begin
                Zc <= Zc_in when ph_2 = '1' else Zc;
                ZA <= Z1_in when ph_2 = '1' else ZA;
                ZB <= Z2_in when ph_2 = '1' else ZB;

-- Concurrent procedure call to CL_Adder, probably a high level
-- model.  Phase 1 enables latching the Zsum output.

                CL_Adder (Z1_in, Z2_in, Zout, Zc);
                Zsum <= Zout when ph_1='1' else Zsum;
        end block Adder_blk;

-- Z is an output signal, but Zsum can be used
-- internally.
        Z <= Zsum;

-- Another concurrent procedure call.  Complex
-- function determining quadrant of angular
-- computations.
        Compute_Angle
                ( Zsum, Zang_out, Zang, f, ph_1, s);

-- Data_out is driving a bus that may be driven by other units.
-- Guarded signal assignment is used here to provide tristate-like
-- checking and driving of the bus.

        Tristate: block ((en = '1') and (ph_1='1'))
                begin
                        Data_out <= guarded Zsum;
                end block Tristate;
        sign_Z <= transport '1' when zsum < 0
                                        else '0';
end Concurrent;

Revised 1/29/98
