CSE 591 Hardware Synthesis with VHDL
Examination #1

I. (15 pts.) Sketch schematics for the following constructs. Unless specified otherwise, assume signals of type std_logic or std_logic_vector of the appropriate size.

      SIGNAL enable : std_ulogic;
      SIGNAL a, b : boolean;
      SIGNAL X, Y, Z : std_logic;


a.   IF enable = '0'
      THEN Y <= X;
      END IF;






b.   IF enable = '1'
      THEN Z <=  X;
      ELSE  Z <= Y;
      END IF;






c.   IF a OR b
      THEN Z <= X;
      ELSIF  a AND b
            THEN Z <= not X;
            ELSE   Z <= Y;
      END IF;















II. (15 pts.) Sketch schematics for the following constructs. Unless specified otherwise, assume signals of type std_logic or std_logic_vector of the appropriate size.

a.  IF  enable = '1'
    THEN Z <= X;
    ELSIF enable = '0'
        THEN  Z <= not X;
        ELSE Z <= 'X';
    END IF;
Z < = 'X' is not used by the synthesis tool. You may also recognize the circuit above can be replaced by XNOR.

EVERYONE GETS 5 FREE POINTS FOR PART B. The question shown below is the one intended, and the solution is shown on the right.

b. IF  sel = "00"
    THEN  Y <= X;
    ELSE Y <= 'Z';
    END IF;
    IF  sel = "01" and a
    THEN  Z <= X;
    ELSE Z <= Z';
    END IF;

c.  SIGNAL p : integer range 0 to 3;
    SIGNAL Y : std_logic_vector(0 to 1);

    CASE p IS
    when 0 => Y <= "10" after Tprop;
    when 1 => Y <=   X   after Tprop;
    when 2 => Y <=   Y   after Tprop;
    when 3 => Y <= "01" after  Tprop;
    END CASE;


III. (15 pts.) Sketch schematics for the following constructs. Unless specified otherwise, assume signals of type std_logic or std_logic_vector of the appropriate size. Indicate clearly whenever you are showing buses what the width and connection is.

a.  WITH regsel SELECT
    Z <= A after Tprop WHEN "00"
        B after Tprop WHEN  "01"
        C after Tprop WHEN "10"
        D after Tprop WHEN "11"
        "XX" after Tprop WHEN others;

b.   SIGNAL  pbus : std_logic  BUS;
    a1:  BLOCK  ( enable = '0' )
        pbus <= guarded X after Tprop;
        END BLOCK a1;
    a2:  BLOCK  ( enable = '1' )
        pbus <= guarded Y after Tprop;
        END BLOCK a2;
c.  SIGNAL Z : std_logic_vector( 0 to 2) BUS;
    SIGNAL X, Y : std_logic_vector( 0 to 2);
    SIGNAL a, b : std_logic;

    a0:  BLOCK  ( a = '1')
        Z <= X after Tprop;
        END BLOCK;

    a1:  BLOCK ( b = '1')
        Z <= Y after Tprop;
        END BLOCK;

IV. (15 pts.) How does a synthesis tool use each of the following pieces of information:

a. SIGNAL x : 0 to 63;

	Signal X is either a bus or a register of 6 bits.

b. CONSTANT xxxs : std_logic_vector (0 to 7) := (others => 'X');

	XXXs represents "XXXX_XXXX" which is useful for simulation,
            but not for synthesis.
c. SIGNAL Y : std_logic_vector ( X'range ) BUS;
d. ASSERT clock'event and clock = '1' and J'stable(3 ns) and K'stable(3 ns) e. Z <= X(N-1) & X( 0 to N-2) -- X(0 to N-1)

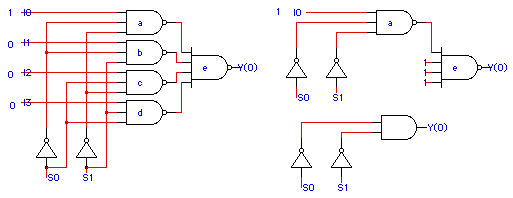

V. (15 pts.) Sketch the unoptimized circuit (4 pts.) and then explaining your steps transform the original circuit into an optimized result. (4 pts).

a.  Y := X(0);
    FOR i in 1 to 3 LOOP
        IF X(i) = '1' THEN Y <= not Y;
    END LOOP;
Vb. SIGNAL Y : std_logic_vector (0 to 3);
    SIGNAL opcode : std_logic_vector (0 to 1);

    WITH  opcode SELECT
    Y <= "0001" WHEN "11",
        "0010" WHEN "10",
        "0100" WHEN "01",
        "1000" WHEN "00";
VI. (15 pts.) Given the following state transition diagram, write a VHDL description that separates the clock, the next state logic, and the output function into separate processes. Use an enumerated type for the state object.

VI.b. Draw a schematic (using D flipflops) similar to the circuit that either Synopsys or Autologic should produce from such a description. Assume a "one hot" encoding of the states.

VII. (10 pts.) Asynchronous design

Even though Synopsys and Autologic won't synthesize this description, using the form using a "one hot" encoding of the implicit states developed in class this semester to support the representation of algorithmic state machines (flowchart approaches to describing state machines), what should a synthesis tool produce?

    ARCHITECTURE a OF b IS
    SIGNAL  request, send,  ack : boolean;
    SIGNAL  Data_in, Cvec : std_logic_vector (0 to 3);
    BEGIN

    PROCESS BEGIN
        send <= false;
        WAIT UNTIL request;
        send <= true;
        Cvec <= Data_in;
        WAIT UNTIL ack;
        END PROCESS;
    END a;

Copyright 1995, Ben M. Huey
Copying this document without the permission of the author is prohibited and a violation of international copyright laws.

Revised 12/11/95
