Step 3: Locate a Timing Path in the Floorplan Editor

To locate the source of a timing path message in the Last Compilation floorplan, follow these steps:

  1. In the Messages window, select the Longest register to register message.

  2. Choose Locate (right button pop-up menu). The data path is highlighted in the floorplan, and the total timing path delay appears alongside the path.

    3. Show Me

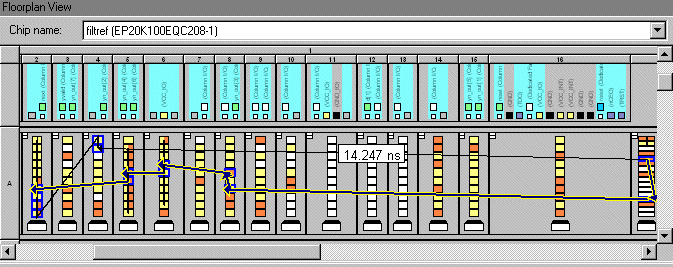

    Timing Path in the Floorplan Editor


To continue the tutorial, proceed to Step 4: View the tSU Timing Analysis Report.
