When configuring an APEX 20K device, you can switch between JTAG and Passive Serial programming modes. If you select JTAG mode, both configuration and programming options appear in the window. However, only the Program/Configure option is available for APEX 20K devices. All other options that appear in JTAG mode, are available only for configuration devices.
To change the programming mode:
|

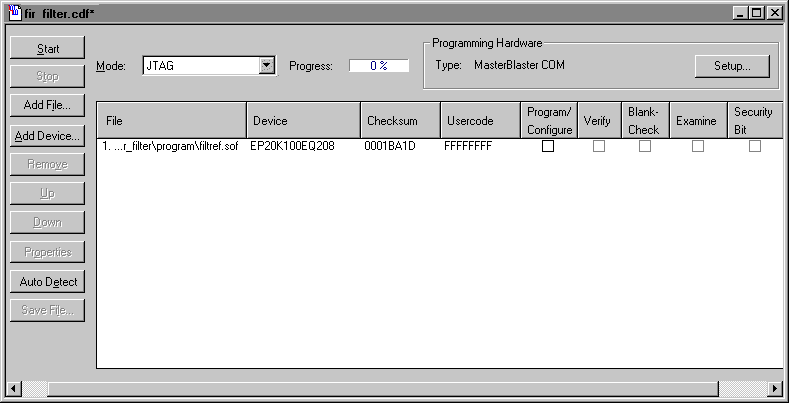

In the Programmer window, select JTAG in the Mode list. |
|
