Lists information about the usage and availability of the DSP blocks in Stratix™ and Stratix™ GX devices, including multipliers, adders, accumulators, and DSP block 9-bit elements. This section is omitted if the design does not include DSP blocks.
Information is provided as follows:
| Heading | Description |
|---|---|
| Statistic | Lists the various operating modes of the DSP blocks. |
| Number Used | Shows the number of each type of DSP block used in the device. |
| Available per Block | Shows the number of available resources in the DSP block for each DSP mode. |
| Maximum Available | Shows the total number of available resources in the device for each mode, if all DSP blocks on the device operate in the same mode. |

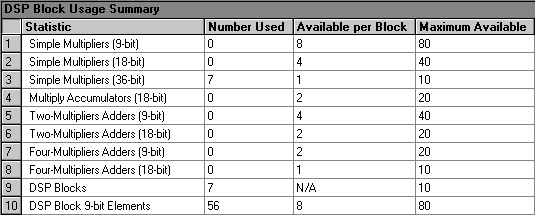

The following example shows the DSP Block Usage Summary section generated for a sample design:
|
