Lancelot

Lancelot is a VGA video controller for the Altera Excalibur Nios & ARM processors.

Lancelot can display an image with a resolution up to 1024 x 768 pixels with 256 colors.

The Lancelot core is written in VHDL and can be synthesized for all Altera FPGA devices including the new Stratix and Cyclone devices.

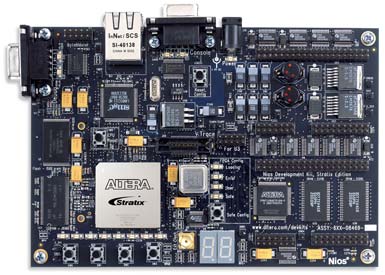

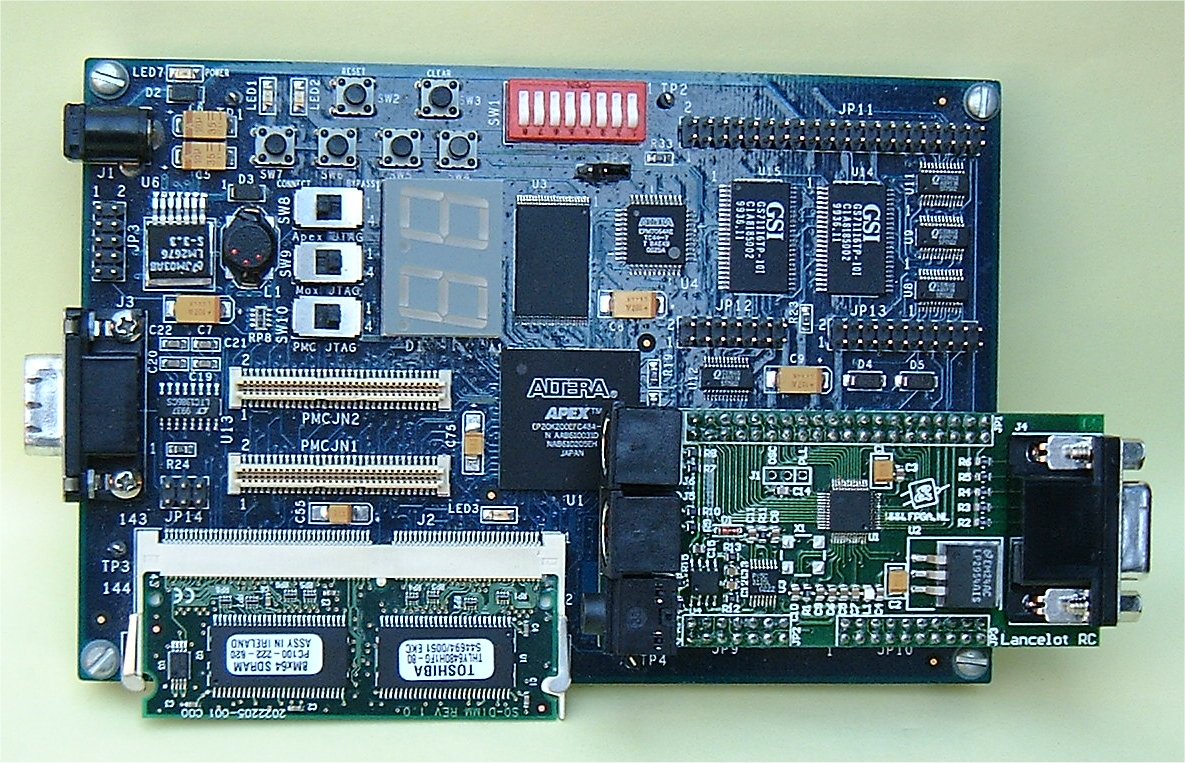

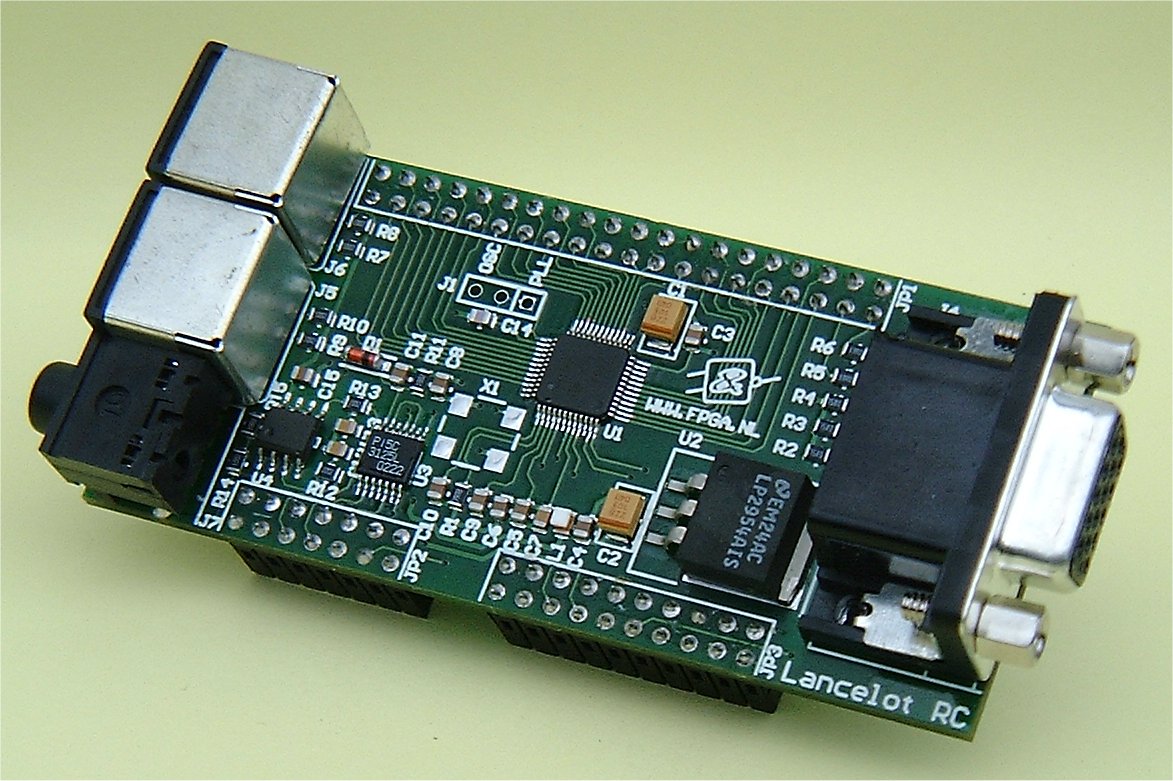

The Lancelot board is a plug-in daugther card for the Altera Excalibur development boards, including the Stratix Nios and EPXA1 boards, with 24-bits video DAC, VGA connector, stereo audio jack and two PS2 connectors.

	Lancelot User Manual (600 KB)
	Lancelot PCB files (363 KB)
	Reference design for the APEX Nios Board (1.6 MB)
	Reference design for the Stratix Nios Board (2.8 MB)

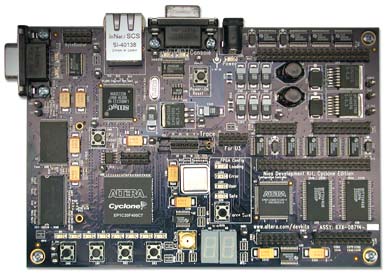

	Reference design for the Cyclone Nios Board (2.5 MB)

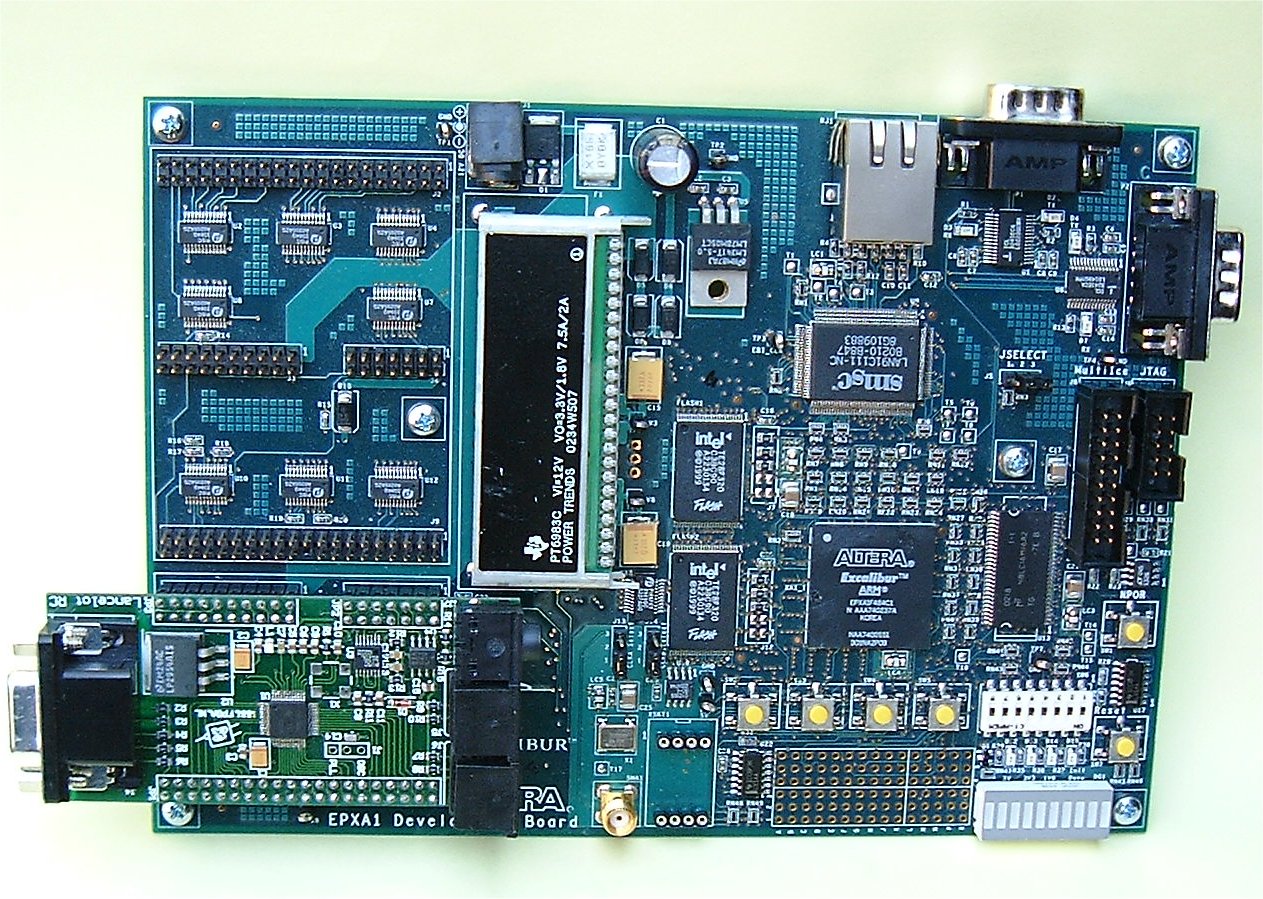

	Reference Design for the EPXA1 Board (2 MB)
	Altera Mandelbrot demo for Stratix Nios Board (300 KB)
	Altera Mandelbrot demo for Cyclone Nios board (300 KB)
	Altera Slot Machine demo for EPXA1 Development Board (350 KB)
	Compact Flash Player for Cyclone Nios Board (3.5 MB)
	Altera AN 287: Using Excalibur DMA Controllers for Video Imaging (318 KB)
	Altera AN 308: Building Embedded Processor Systems Using SOPC Builder & Excalibur Devices (1.2 MB)

The Lancelot kit is available for ordering.
Please visit the AleaREP website for more information.
